Plate Rolling Machine: Types, Working Principle & Complete Selection Guide
Introduction
A plate rolling machine (also known as roll bending machine) is core metal fabrication equipment designed to bend flat steel plates, stainless steel sheets and alloy plates into cylindrical, conical and arc-shaped workpieces.
It is widely used in shipbuilding, pressure vessel manufacturing, pipeline engineering, wind power equipment, boiler production and structural steel fabrication. Different types of plate rolling machines cover thin sheet rolling, medium plate rolling and heavy thick plate rolling tasks.
Many global buyers confuse mechanical type vs hydraulic type, 3-roll vs 4-roll plate rolling machine when sourcing. This complete SEO guide explains classification, working principle, advantages, industrial applications and professional selection methods to help you pick the most cost-effective plate rolling machine for your workshop.
1. Main Types of Plate Rolling Machine
We classify mainstream plate rolling machine models by structure, driving mode and automation level.
1.1 3-Roll Plate Rolling Machine
The 3-roll plate rolling machine is the most popular and cost-effective model in global market.
It includes mechanical symmetrical type, upper roller universal type and hydraulic adjustable type.
Suitable for carbon steel, stainless steel and aluminum plate rolling
Flexible for small batch and medium batch production
Widely purchased by small and medium metal fabrication factories

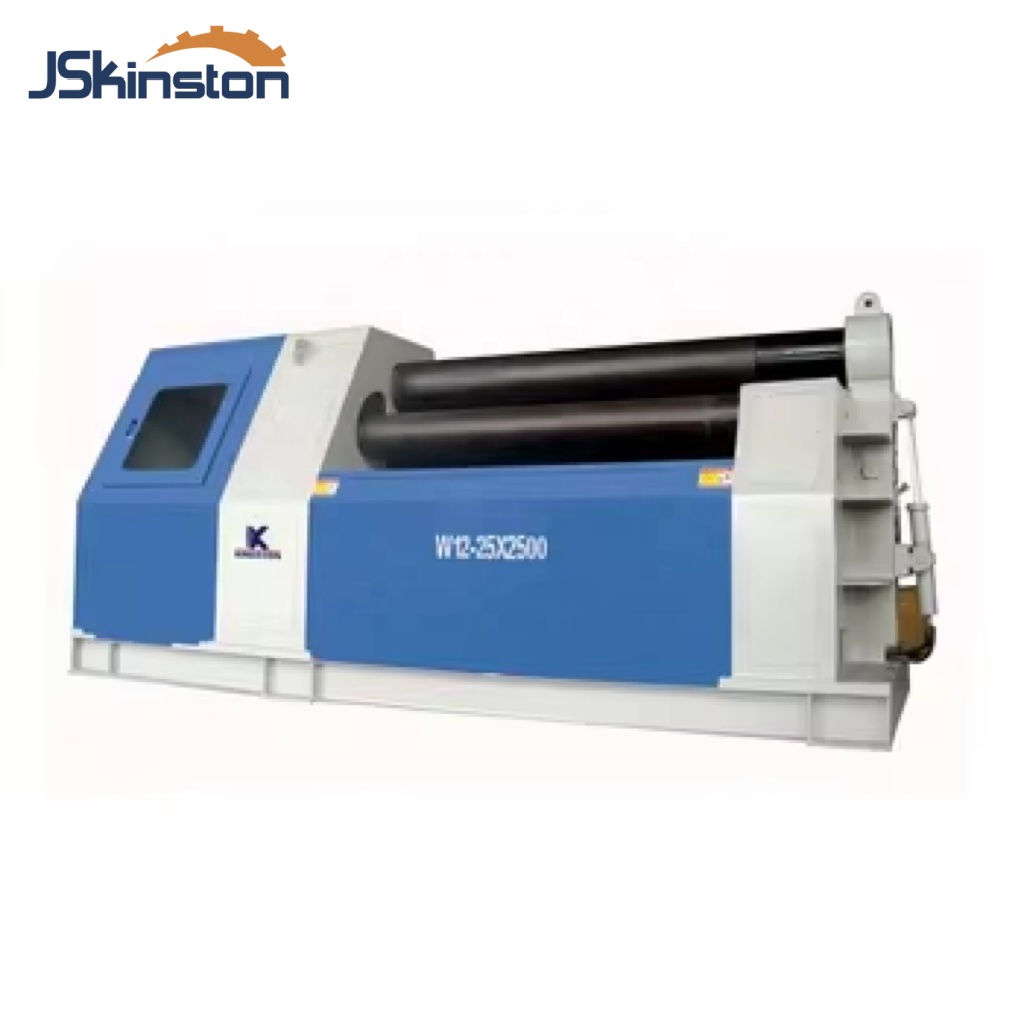

1.2 4-Roll Plate Rolling Machine
4-roll plate bender features precise pre-bending function, no straight edge leftover after rolling.
Higher rolling precision than 3-roll machine
Perfect for high-precision cylinder and tank production
Ideal for pressure vessel and high-end pipeline manufacturing
1.3 Mechanical Plate Rolling Machine
Mechanical plate rolling machine adopts motor and gear transmission.
Low cost, stable performance, easy maintenance
Fit for thin and medium plate conventional rolling
Best choice for budget buyers and general workshop processing

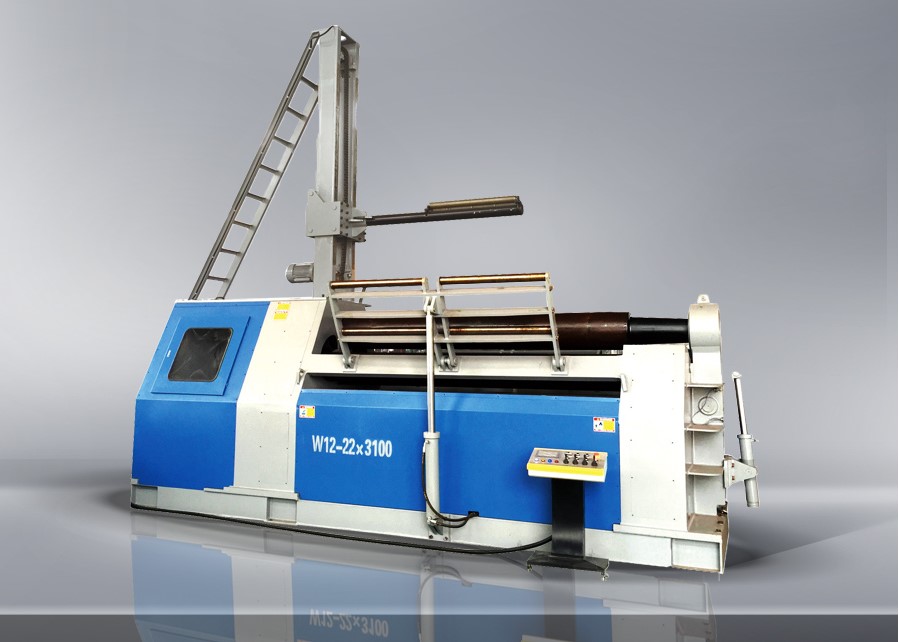

1.4 Hydraulic Plate Rolling Machine
Hydraulic plate rolling machine uses full hydraulic driving system for heavy load rolling.
Strong pressure for thick steel plate rolling
Stable bending effect, less plate deformation
Used for heavy industry and thick plate processing
1.5 CNC Plate Rolling Machine
CNC plate rolling machine supports automatic program control, precise rolling angle and arc size setting.
Intelligent one-time forming
Consistent finished workpiece tolerance
Suitable for large-scale standardized batch production
2. How Does a Plate Rolling Machine Work?
The working principle of a metal sheet rolling machine is simple and efficient:
Three or four rollers squeeze and push the flat metal plate step by step. With continuous feeding and roller extrusion, the flat plate produces plastic deformation and forms uniform circular arc or cylindrical shape.
Professional plate rolling equipment can complete pre-bending, rolling and rounding in one clamping, greatly improving production efficiency and reducing manual errors.
3. Key Advantages of Plate Rolling Machine
High forming efficiency
Replace traditional manual bending and fire bending, greatly improve workshop output.
Smooth workpiece surface
Standard roller design avoids plate scratches, ensures neat cylinder surface for stainless steel and decorative plates.
Wide material compatibility
Process carbon steel, stainless steel, aluminum, copper and alloy steel plates.
Strong production adaptability
From thin sheet decorative rolling to thick boiler plate rolling, full coverage of industrial demands.
Long service life
Heavy cast iron frame, heat treatment body, anti-deformation structure for long-term heavy-duty work.
4. Industrial Applications of Plate Rolling Machine
Professional steel plate rolling machine serves multiple core industries worldwide:
Pressure vessel & boiler industry: Tank cylinder, boiler shell rolling
Shipbuilding industry: Hull arc plate, ship structural bending parts
Wind power & new energy: Wind tower base and curved support parts
Pipeline engineering: Large-diameter steel pipe prefabrication
Metal structure factory: Round bracket, arc frame, cylindrical workpiece production
Environmental equipment: Dust collector cylinder, water tank shell processing
5. How to Select the Right Plate Rolling Machine
To avoid wrong model purchase, confirm these 5 core parameters before quotation:
5.1 Maximum rolling thickness
Define machine tonnage and model: thin sheet for mechanical type, thick plate for hydraulic heavy-duty model.
5.2 Maximum plate width
Machine working width must be larger than your regular workpiece width with proper margin.
5.3 Material hardness
Ordinary carbon steel for standard configuration; stainless steel and alloy steel need upgraded hydraulic pressure.
5.4 Precision requirement
Ordinary structural parts → 3 roll plate rolling machine; high-precision tank parts → 4 roll CNC plate rolling machine.
5.5 Production volume
Sporadic small batch → mechanical plate rolling machine; mass production → automatic CNC hydraulic model.
6. FAQ — Buyer Common Questions
Q: What is the difference between 3 roll and 4 roll plate rolling machine?
A: 3-roll model is cost-effective for general rolling; 4-roll plate bender has better pre-bending effect and higher precision without straight edge residue.
Q: Is CNC plate rolling machine worth buying?
A: Yes for batch production. CNC automatic control ensures uniform arc size and reduces labor cost.
Q: Can the machine roll stainless steel?
A: All our plate rolling machines support stainless steel, aluminum and carbon steel processing with standard roller surface protection.
Conclusion
Plate rolling machine is essential equipment for modern metal bending and forming processing. Choosing suitable 3-roll, 4-roll, mechanical, hydraulic or CNC plate rolling machine can greatly improve product quality and workshop productivity.
We are professional plate rolling machine manufacturer in China, providing full-series roll bending machines with CE certification, stable quality and export standard packaging.
Contact us for technical parameters, catalog and latest FOB quotation.
