Four Column & Single Column Hydraulic Press Complete Guide
Introduction
A hydraulic press machine is a versatile industrial forming machine that generates powerful compressive force based on Pascal’s law. Different from mechanical presses, the hydraulic press machine delivers full stable pressure throughout the entire stroke, making it the most reliable equipment for metal forming, deep drawing, stamping, bending, molding, assembly and powder compressing.
Widely used in automotive manufacturing, hardware processing, mold production, new energy and heavy industry, industrial hydraulic press occupies an irreplaceable position in modern metal fabrication. Many global buyers are confused about tonnage selection, machine types and configuration matching. This professional SEO guide explains all core knowledge to help you choose the right heavy duty hydraulic press for your workshop.
1. How Does a Hydraulic Press Machine Work?
The working principle of a hydraulic press machine relies on Pascal’s Law: pressure in a confined fluid remains equal in all directions.
The hydraulic pump transmits oil pressure to the cylinder, pushing the piston downwards with amplified and stable force. The matched upper and lower dies squeeze the workpiece to realize plastic deformation, including stretching, shaping, blanking and pressing.
With closed-loop hydraulic circulation system, the hydraulic forming press features stable pressure output, adjustable speed and stroke, no impact force and highly consistent finished workpiece quality.
2. Main Types of Hydraulic Press Machine

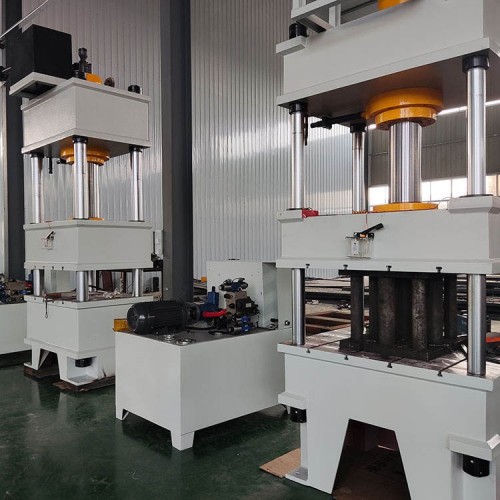

2.1 Four Column Hydraulic Press
Four column hydraulic press is the most popular universal model.
Features: High rigidity, balanced force distribution, large worktable area
Application: Deep drawing, auto parts forming, stainless steel product molding, thick plate pressing
Tonnage range: 63T–2000T, suitable for medium and heavy industrial production
2.2 Single Column Hydraulic Press
Single arm C-type structure, open working space.
Features: Flexible operation, convenient workpiece loading and unloading
Application: Shaft straightening, bushing pressing, small stamping, riveting and trimming
2.3 Frame Type Hydraulic Press
Integrated welded frame structure, ultra-high precision and anti-deformation performance.
Suitable for high-precision mold pressing, coining and precision part forming
2.4 CNC Automatic Hydraulic Press
Intelligent numerical control hydraulic press with programmable stroke, pressure and dwell time.
Suitable for mass batch production with strict tolerance requirements
3. Core Advantages of Industrial Hydraulic Press Machine
Full-stroke stable pressure
Unlike mechanical presses, the hydraulic stamping press maintains full tonnage output at any stroke position, perfect for deep drawing and complex forming.
Strong heavy-duty capacity
Easily process thick steel plates, high-hardness alloy steel and large-area forming workpieces.
Adjustable parameters freely
Pressure, speed, stroke and dwell time can be customized according to different materials and processes.
Low vibration & high safety
Smooth hydraulic transmission reduces running vibration, equipped with safety grating and emergency stop system to avoid operational risks.
Multi-function compatibility
One machine supports drawing, bending, punching, flattening, assembly and powder pressing by changing different molds.
4. Industrial Applications of Hydraulic Press Machine
The heavy duty hydraulic press serves almost all manufacturing industries:
Automotive industry: Car cover parts, chassis accessories, brake parts forming

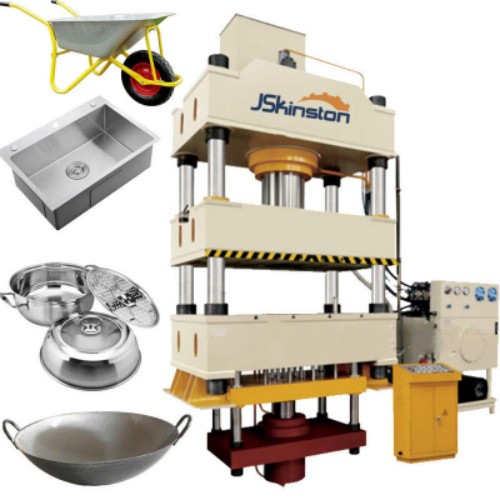

Hardware & daily products: Stainless steel utensils, metal shells, hardware stamping parts
Mold industry: Mold trial pressing, mold base flattening
New energy industry: Battery shell, aluminum profile pressing and forming
Mechanical processing: Shaft straightening, bearing pressing, parts assembly
Powder metallurgy: Powder compression molding for industrial accessories
5. How to Select the Right Hydraulic Press Machine
5.1 Confirm Working Process
Straightening, pressing, small trimming → Single column hydraulic press
Deep drawing, large-area forming, heavy stamping → Four column hydraulic press
High-precision batch production → CNC hydraulic press
5.2 Match Correct Tonnage
Light pressing & assembly: 40T–63T
Medium stamping & bending: 100T–200T
Heavy deep drawing & thick plate forming: 315T–1000T+
5.3 Worktable & Stroke Size
Reserve 10%–15% margin for workpiece size and mold installation to avoid processing limitation.
5.4 Material Hardness
Carbon steel and stainless steel forming require larger tonnage than aluminum and copper processing.
6. Daily Maintenance Tips
Regularly check hydraulic oil level and oil quality, replace deteriorated hydraulic oil on time.
Keep the hydraulic system clean to prevent oil pipe blockage and pressure instability.
Lubricate guide rails and sliding parts daily to reduce friction wear.
Check seals and pipeline joints regularly to avoid hydraulic oil leakage.
Avoid long-term overload pressing to protect machine frame and hydraulic components.
FAQ
Q: What is the difference between hydraulic press and mechanical press?
A: A hydraulic press machine provides stable full-stroke pressure for deep drawing and heavy forming; mechanical presses are faster for simple blanking and high-speed stamping.
Q: Which hydraulic press model is most widely used?
A: The four column hydraulic press is the most universal model for most industrial forming tasks.
Q: Can hydraulic press machine do deep drawing work?
A: Yes. Hydraulic press is the best choice for deep drawing parts due to its stable and adjustable pressure.
Conclusion
As a multi-functional and high-efficiency forming device, the hydraulic press machine is essential for modern metal fabrication. Reasonable selection of type, tonnage and configuration can greatly improve production efficiency and reduce defective rates.
We supply full-series hydraulic presses including single column, four column and CNC hydraulic press machines with CE certification, stable quality and export-standard packaging. Custom tonnage, table size and functional configurations are available.
Contact us to get professional technical solution and latest FOB quotation.
